Sovereign 4 Tube Cast Iron Radiators 26"
Sovereign 4 Tube Cast Iron Radiators 26"
$686.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Traditional Style, Reliable Performance

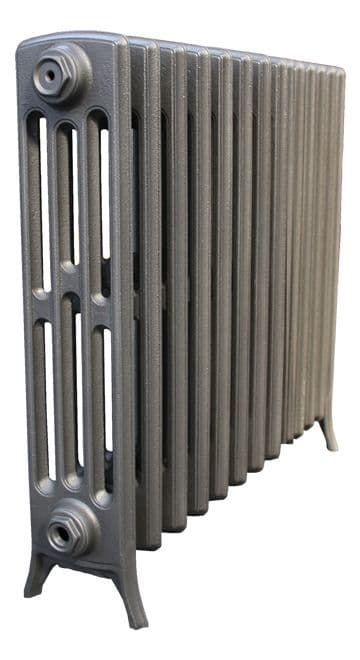

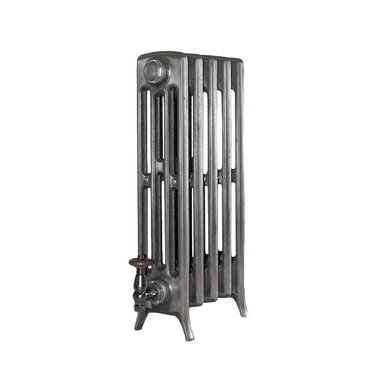

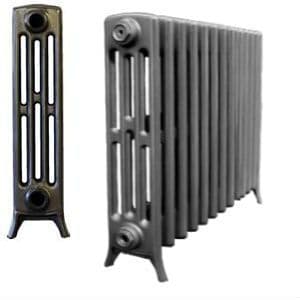

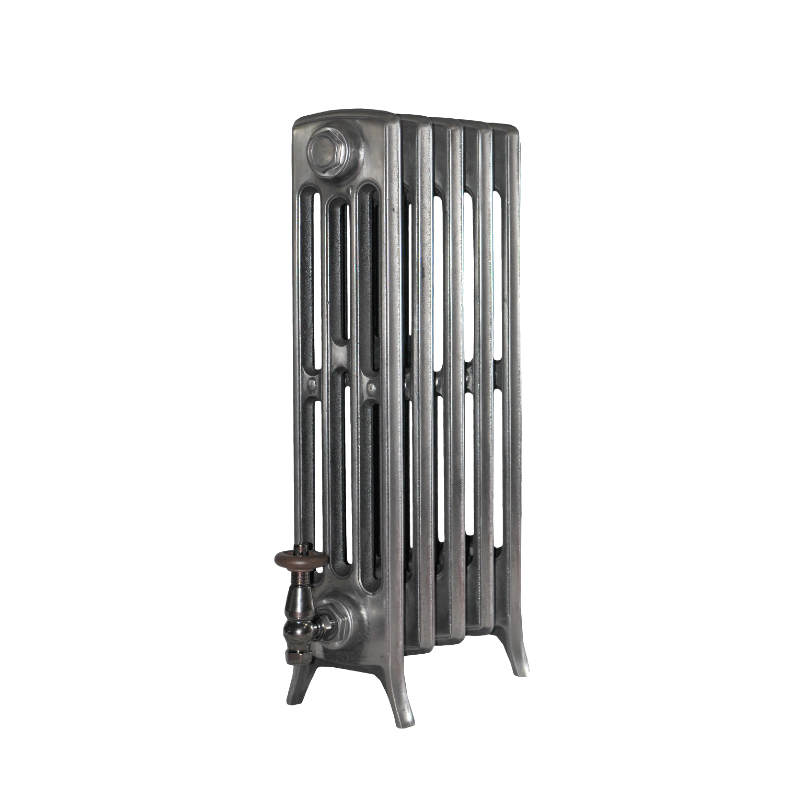

The Sovereign 4-Tube 26" Cast Iron Radiator is a classic mid-height model, offering excellent heat output with timeless late Victorian and Edwardian styling. At 26 inches tall, it’s a popular choice for both period restorations and modern interiors seeking authentic character.
Cast in Europe using original molds and traditional techniques, each radiator is hand-assembled to order and finished to your exact specifications. Available in any length and a wide range of painted, polished, or powder-coated finishes, it’s easy to create a cohesive look across multiple rooms in your home.
Every Sovereign radiator is fully pressure-tested, backed by a 25-year guarantee, and designed for use with both hot water (hydronic) and steam heating systems—bringing heritage charm together with modern performance.
📞 Call 212-814-6888 to customize or order your Sovereign 26" radiator today.
Product specifications
| Steam BTU output per section | |
|---|---|
| BTU output (Delta 50) per section (Regular gas Boiler) | |
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |

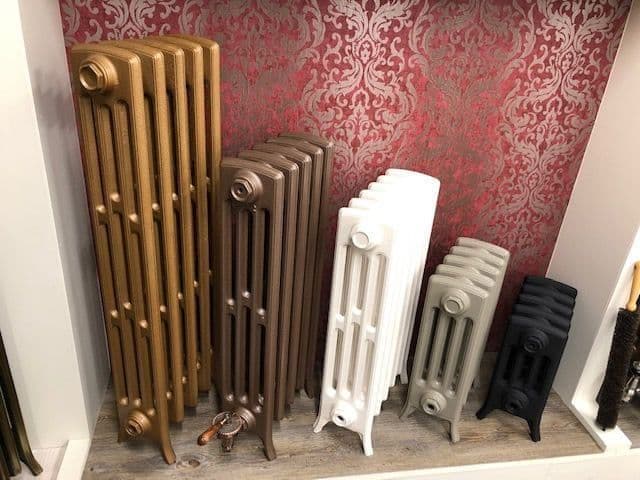

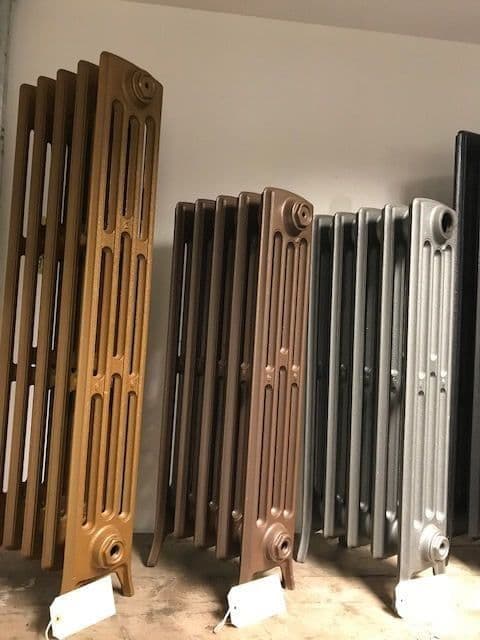

Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.
Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Columns | Steam BTUs | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S4C-660-1 | 1 | 664 | 300 | 180 | 2.77 | 3.36 | 19 | $562 | $582 | $591 | $597 |
| S4C-660-2 | 2 | 1328 | 600 | 360 | 5.54 | 5.72 | 37 | $624 | $664 | $682 | $694 |
| S4C-660-3 | 3 | 1992 | 900 | 540 | 8.31 | 8.08 | 56 | $686 | $746 | $773 | $791 |
| S4C-660-4 | 4 | 2656 | 1200 | 720 | 11.08 | 10.44 | 75 | $748 | $828 | $864 | $888 |
| S4C-660-5 | 5 | 3320 | 1500 | 900 | 13.85 | 12.8 | 94 | $810 | $910 | $955 | $985 |
| S4C-660-6 | 6 | 3984 | 1800 | 1080 | 16.62 | 15.16 | 112 | $872 | $992 | $1046 | $1082 |
| S4C-660-7 | 7 | 4648 | 2100 | 1260 | 19.39 | 17.52 | 131 | $934 | $1074 | $1137 | $1179 |
| S4C-660-8 | 8 | 5312 | 2400 | 1440 | 22.16 | 19.88 | 150 | $996 | $1156 | $1228 | $1276 |
| S4C-660-9 | 9 | 5976 | 2700 | 1620 | 24.93 | 22.24 | 168 | $1058 | $1238 | $1319 | $1373 |
| S4C-660-10 | 10 | 6640 | 3000 | 1800 | 27.7 | 24.6 | 187 | $1120 | $1320 | $1410 | $1470 |
| S4C-660-11 | 11 | 7304 | 3300 | 1980 | 30.47 | 26.96 | 206 | $1182 | $1402 | $1501 | $1567 |
| S4C-660-12 | 12 | 7968 | 3600 | 2160 | 33.24 | 29.32 | 224 | $1244 | $1484 | $1592 | $1664 |
| S4C-660-13 | 13 | 8632 | 3900 | 2340 | 36.01 | 31.68 | 243 | $1306 | $1566 | $1683 | $1761 |
| S4C-660-14 | 14 | 9296 | 4200 | 2520 | 38.78 | 34.04 | 262 | $1368 | $1648 | $1774 | $1858 |
| S4C-660-15 | 15 | 9960 | 4500 | 2700 | 41.55 | 36.4 | 281 | $1430 | $1730 | $1865 | $1955 |
| S4C-660-16 | 16 | 10624 | 4800 | 2880 | 44.32 | 38.76 | 299 | $1492 | $1812 | $1956 | $2052 |
| S4C-660-17 | 17 | 11288 | 5100 | 3060 | 47.09 | 41.12 | 318 | $1554 | $1894 | $2047 | $2149 |
| S4C-660-18 | 18 | 11952 | 5400 | 3240 | 49.86 | 43.48 | 337 | $1616 | $1976 | $2138 | $2246 |
| S4C-660-19 | 19 | 12616 | 5700 | 3420 | 52.63 | 45.84 | 355 | $1678 | $2058 | $2229 | $2343 |
| S4C-660-20 | 20 | 13280 | 6000 | 3600 | 55.4 | 48.2 | 374 | $1740 | $2140 | $2320 | $2440 |
