Steel Cast Iron Radiator Bracket 176 lbs

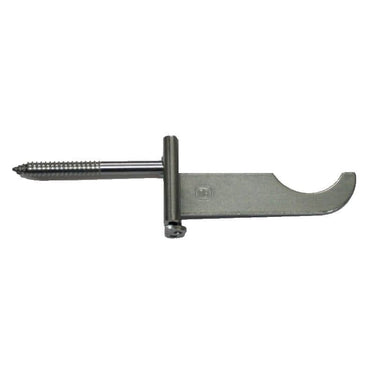

Heavy-Duty Steel Wall Bracket – Medium Length (Supports up to 176 lbs)
This heavy-duty steel wall bracket is designed to securely mount cast iron radiators without legs directly to the wall. Measuring 5" total length (3.75" to center), it supports up to 176 lbs (80kg), making it a strong and reliable choice for medium-weight radiators—especially where floor legs aren’t practical or when radiators are installed above baseboards.
While most cast iron radiators come with legs and only require a standard wall stay, these specialist brackets are the perfect solution for safe wall-mounted installations.
Key Features:
-
Heavy-duty steel construction
-
5" total length (3.75" to pipe center)
-
Supports up to 176 lbs
-
Designed for radiators without legs
-
Ideal for installations above baseboards
-
Available in multiple lengths and load capacities
-
Use multiple brackets for heavier radiators
Bracket Options:
| Product Code | Distance to Pipe Center | Total Length | Max Weight |
|---|---|---|---|
| RA-BR-065 | 2.5" (65mm) | 4" (100mm) | 220 lbs (100kg) |
| RA-BR-095 | 3.75" (95mm) | 5" (125mm) | 176 lbs (80kg) |
| RA-BR-115 | 4.5" (115mm) | 5.75" (145mm) | 132 lbs (60kg) |
Not sure how many brackets you need? Call our expert team at (212) 814-6888 for professional advice tailored to your project.
Steel Cast Iron Radiator Bracket 176 lbs
$70.00
/
