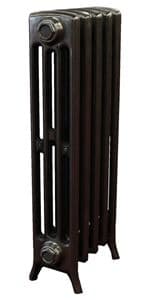

Sovereign 4 Tube Cast Iron Radiators 30"
Sovereign 4 Tube Cast Iron Radiators 30"
$710.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

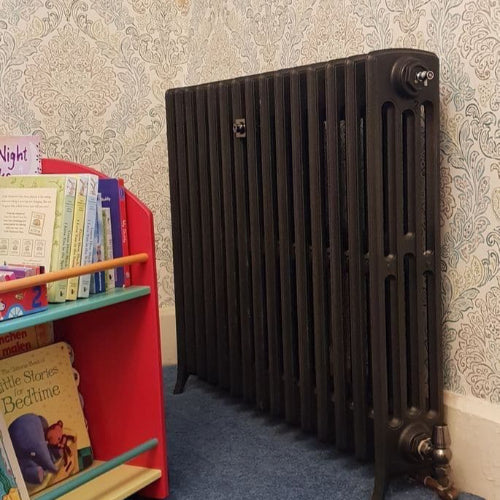

Classic Height, Superior Heat Output

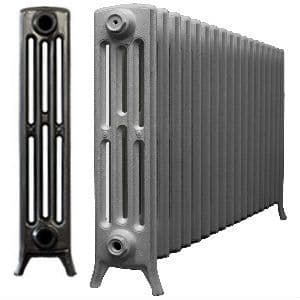

The Sovereign 4-Tube 30" Cast Iron Radiator is one of the most popular sizes in this distinguished range—standing at 30 inches tall, it’s perfectly proportioned to fit beneath most windows while delivering exceptional heat output and timeless design. Favored by homeowners, interior designers, and restoration specialists alike, this model blends late Victorian and Edwardian styling with modern heating performance.

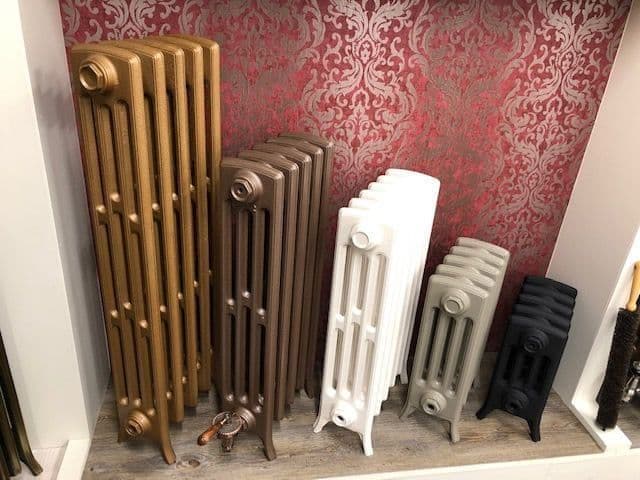

Cast in Europe using original historic molds, the Sovereign range is available in five heights, allowing you to maintain the same elegant design throughout your home—whether in living rooms, bedrooms, or hallways. Each radiator is built to order, fully assembled, and rigorously tested for quality and performance.
Designed for use with both hydronic (hot water) and steam heating systems, the Sovereign 4-Tube radiator combines durability with classic good looks. Choose from a wide variety of painted colors, metallic finishes, or hand-polished options to perfectly complement your interior.
With guaranteed cast iron purity, precise European casting standards, and traditional paper gaskets, the Sovereign is widely regarded as one of the finest cast iron radiators available today. Backed by a 25-year guarantee, it’s a reliable, design-led heating solution built to last for generations.
📞 Call 212-814-6888 to customize your Sovereign radiator or place an order today.

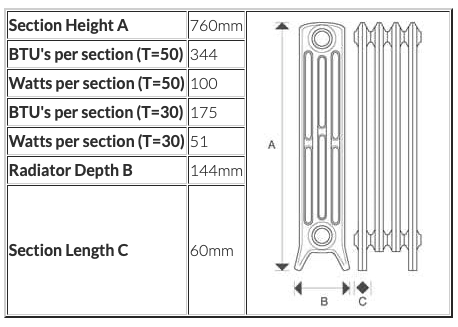

Product specifications
| Steam BTU output per section | |
|---|---|
| BTU output (Delta 50) per section (Regular gas Boiler) | |
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.

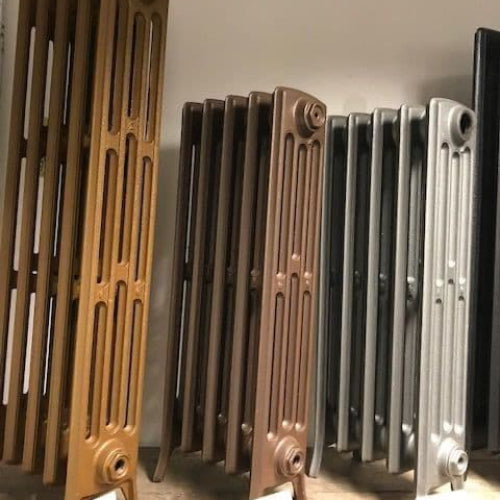

Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.

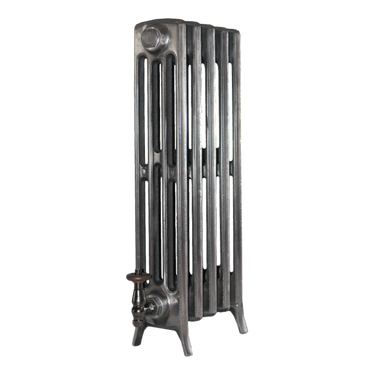

Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.

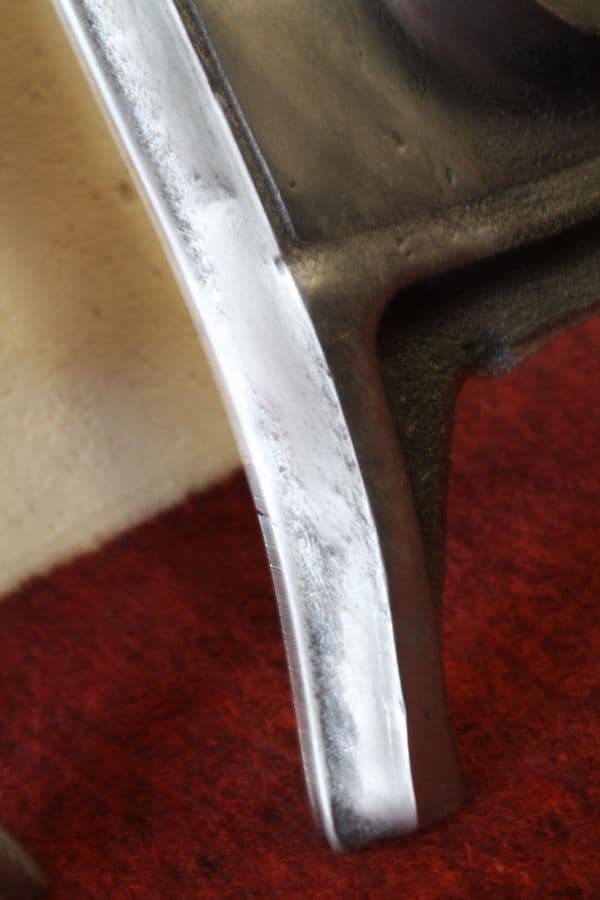

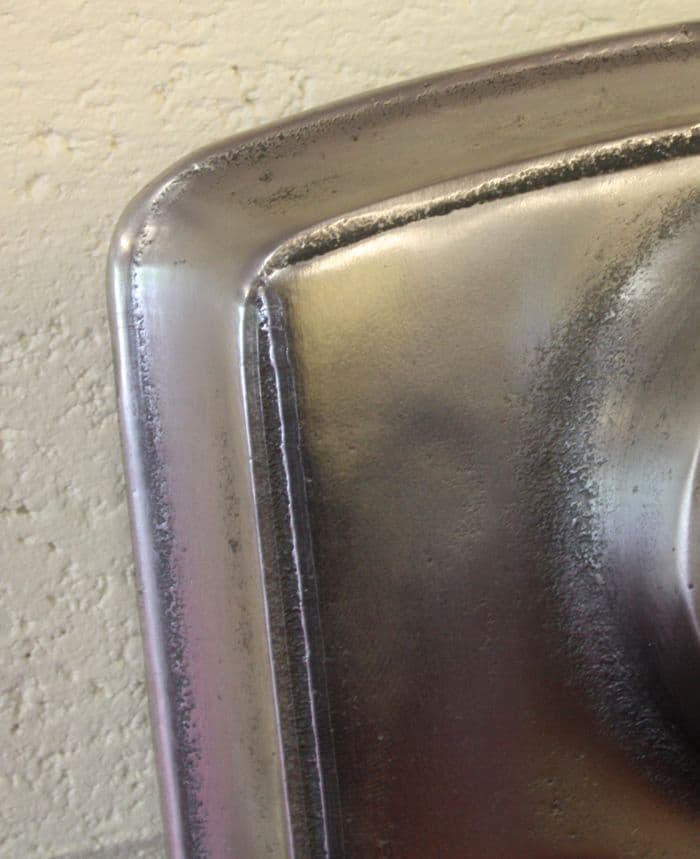

Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Columns | Steam BTUs | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S4C-760-1 | 1 | 530 | 344 | 175 | 2.21 | 3.36 | 15 | $570 | $590 | $599 | $605 |
| S4C-760-2 | 2 | 1060 | 688 | 350 | 4.42 | 5.72 | 31 | $640 | $680 | $698 | $710 |
| S4C-760-3 | 3 | 1590 | 1032 | 525 | 6.63 | 8.08 | 46 | $710 | $770 | $797 | $815 |
| S4C-760-4 | 4 | 2120 | 1376 | 700 | 8.84 | 10.44 | 62 | $780 | $860 | $896 | $920 |
| S4C-760-5 | 5 | 2650 | 1720 | 875 | 11.05 | 12.8 | 77 | $850 | $950 | $995 | $1025 |
| S4C-760-6 | 6 | 3180 | 2064 | 1050 | 13.26 | 15.16 | 92 | $920 | $1040 | $1094 | $1130 |
| S4C-760-7 | 7 | 3710 | 2408 | 1225 | 15.47 | 17.52 | 108 | $990 | $1130 | $1193 | $1235 |
| S4C-760-8 | 8 | 4240 | 2752 | 1400 | 17.68 | 19.88 | 123 | $1060 | $1220 | $1292 | $1340 |
| S4C-760-9 | 9 | 4770 | 3096 | 1575 | 19.89 | 22.24 | 139 | $1130 | $1310 | $1391 | $1445 |
| S4C-760-10 | 10 | 5300 | 3440 | 1750 | 22.1 | 24.6 | 154 | $1200 | $1400 | $1490 | $1550 |
| S4C-760-11 | 11 | 5830 | 3784 | 1925 | 24.31 | 26.96 | 169 | $1270 | $1490 | $1589 | $1655 |
| S4C-760-12 | 12 | 6360 | 4128 | 2100 | 26.52 | 29.32 | 185 | $1340 | $1580 | $1688 | $1760 |
| S4C-760-13 | 13 | 6890 | 4472 | 2275 | 28.73 | 31.68 | 200 | $1410 | $1670 | $1787 | $1865 |
| S4C-760-14 | 14 | 7420 | 4816 | 2450 | 30.94 | 34.04 | 216 | $1480 | $1760 | $1886 | $1970 |
| S4C-760-15 | 15 | 7950 | 5160 | 2625 | 33.15 | 36.4 | 231 | $1550 | $1850 | $1985 | $2075 |
| S4C-760-16 | 16 | 8480 | 5504 | 2800 | 35.36 | 38.76 | 246 | $1620 | $1940 | $2084 | $2180 |
| S4C-760-17 | 17 | 9010 | 5848 | 2975 | 37.57 | 41.12 | 262 | $1690 | $2030 | $2183 | $2285 |
| S4C-760-18 | 18 | 9540 | 6192 | 3150 | 39.78 | 43.48 | 277 | $1760 | $2120 | $2282 | $2390 |
| S4C-760-19 | 19 | 10070 | 6536 | 3325 | 41.99 | 45.84 | 293 | $1830 | $2210 | $2381 | $2495 |
| S4C-760-20 | 20 | 10600 | 6880 | 3500 | 44.2 | 48.2 | 308 | $1900 | $2300 | $2480 | $2600 |
