BTU output (Delta 50) per section (Regular gas Boiler)	210
BTU output (Delta 30) per section (Heat pump)	107
EDR sq ft (Equivalent Direct Radiation)	1.35
Volume (gal)	0.22
Weight (lb)	8.8
Section Length (in)	2.36 in
Height (in)	18 in

By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.

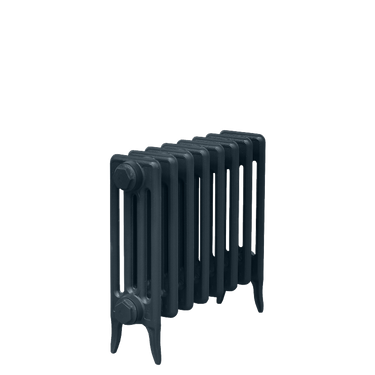

Painted Cast Iron Radiators

We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.

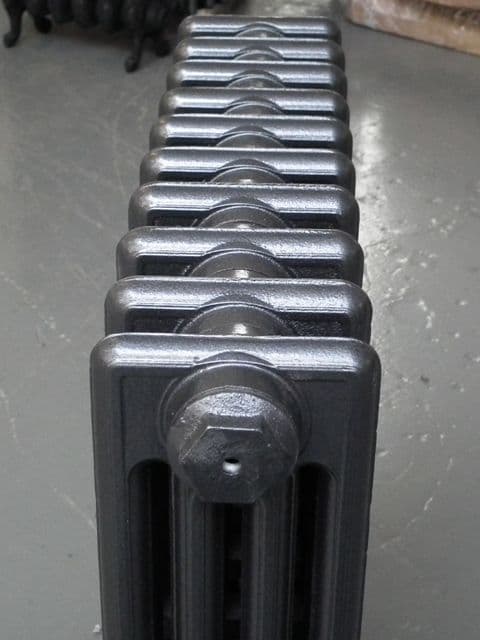

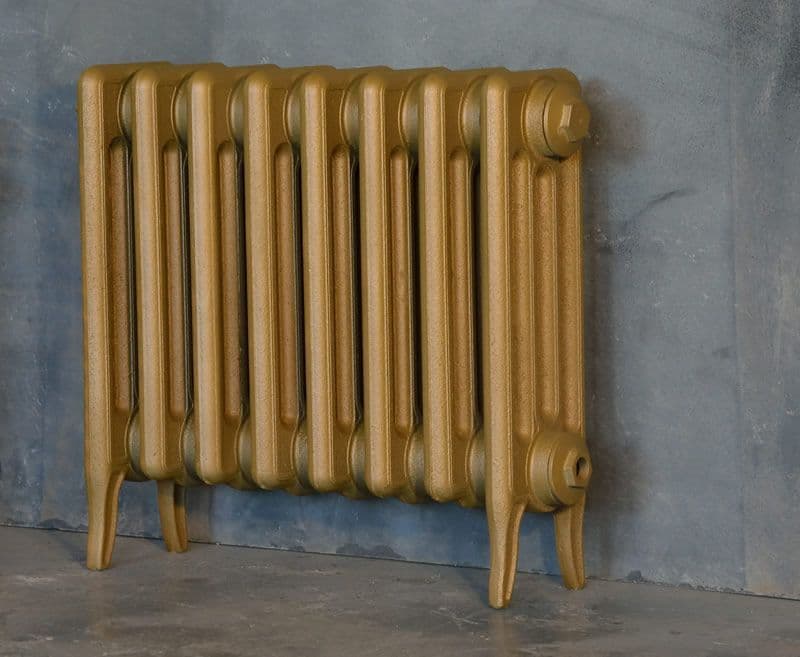

Metallic Cast Iron Radiators

Metallic polished radiators are priced based on size with larger radiators costing slightly more.

Powder Coated Cast Iron Radiators

Powder coated radiators are priced based on size with larger radiators costing slightly more.

Hand Polished Cast Iron Radiators

Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.

We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.





Branded Paint for Cast Iron Radiators

We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.

We also Stock the complete range of Farrow and Ball Colours	We also have access to the beautiful Heritage range of paints from Little Greene.



Other paint colours are available and other RAL powder coat colours finished can be ordered.

If the colour you require is not above, please call us on 212 814 6888

Assembling Your Cast Iron Radiator

(For Hydronic Heating Systems)

Our cast iron radiators can be built to virtually any length you need. For radiators longer than 4 feet (1.2 meters), you have two delivery options:

• Pay a surcharge for an oversized pallet, or

• Receive your radiator in multiple sections for simple on-site assembly.

These instructions apply only to radiators installed on closed-loop hydronic heating systems (water-based heating). Steam radiators require different assembly and installation steps—please contact us for separate instructions if you’re working with steam.

Each hydronic radiator will arrive in clearly labeled sections (A, B, C, etc.) in the correct assembly order. With your shipment, you’ll also receive:

• A radiator assembly tool

• Joining threads

• Gaskets

---

Step 1: Prepare the Area

Select a flat, level surface with plenty of working space. Protect your flooring by laying down a sheet or covering. Place two wooden battens (or lengths of timber) on the floor to support the radiator sections—this prevents scratches and makes alignment easier.

Note: All radiators are pressure-tested with air and water before shipping, so some internal moisture may still be present and could drip during assembly.

---

Step 2: Check Alignment and Thread Direction

Lay out the radiator sections in order. Insert a joining thread into one side of the joint—just a quarter turn to start. Do not force it. One side is left-hand threaded, the other right-hand. The thread should engage smoothly.

For radiators with more than two sections, be especially careful with middle blocks (for example, section B in an A–B–C setup). There is only one correct orientation because of the threading pattern. Test lightly before committing.

---

Step 3: Fit the Gasket

Slide a clean, dry gasket onto the center of the joining thread. Do not use grease, oil, or sealing compounds.

If a gasket is missing or damaged, call us right away at 212-814-6888 and we’ll send a replacement.





---

Step 4: Install the Lower Thread





Repeat the process with the lower joining thread, inserting it gently until it holds in place.









---

Step 5: Align the Sections



Bring the two radiator sections together so they sit flush. Ensure both joining threads are properly aligned with their recesses, and double-check that your gaskets remain centered.



---

Step 6: Use the Assembly Tool

Insert the assembly tool through the section to reach the joining thread. Turn it clockwise until it engages.

Tighten gradually—first give the top thread a partial turn, then switch to the bottom thread, alternating until both are firmly hand-tight. This prevents cross-threading, jamming, or breakage.

---

Step 7: Final Tightening with a Wrench

Once both threads are secure, attach an adjustable wrench to the assembly tool and give each thread an additional quarter turn.

⚠️ Do not overtighten—this can damage the gaskets or threads.

If you’re using EPDM gaskets, a slight bulge at the joint indicates the seal is correct.



---

Important Reminder

These assembly steps are for hydronic radiators only. If your heating system uses steam, please request our steam radiator assembly and installation instructions before proceeding.

---

Need Help?

If you have any questions during assembly, call our team at 212-814-6888. We’ll be happy to walk you through the process.
