Art Nouveau Cast Iron Radiator 23"
Art Nouveau Cast Iron Radiator 23"
$740.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

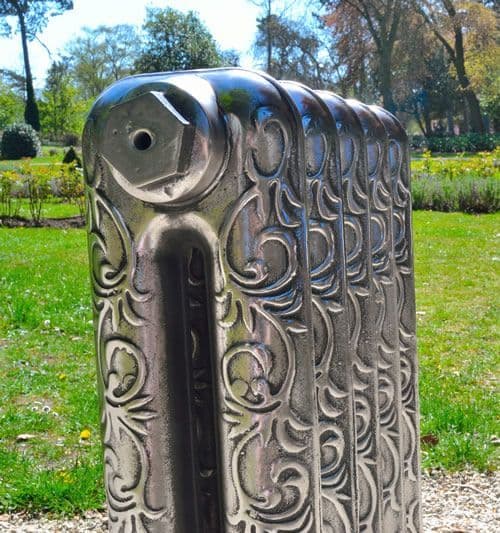

Elegant Lines Inspired by 1890s Design
The Art Nouveau, 23" Cast Iron Radiator is the smaller of two sizes in this decorative range, inspired by the flowing, organic patterns of the Art Nouveau movement from 1890 to 1910. With its slender profile and intricate scrollwork, this radiator brings refined period style to both traditional homes and design-led interiors.
Cast from original molds and hand-assembled in our workshop, each radiator is made to order and finished to your exact specifications. Choose from our wide selection of painted, metallic, or hand-polished finishes to complement your space. Fully assembled and pressure-tested to 8 bar, this radiator is manufactured to meet international standards and is backed by a 10-year guarantee.
Suitable for all heating systems—including renewable energy sources—and subject to our strict quality-control process, the Art Nouveau 23" combines graceful form with dependable performance.
Call (212) 814-6888 to order or customize your radiator today.
Product specifications
| BTU output (Delta 50) per section (Regular gas Boiler) | |
|---|---|
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.
Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Columns | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|
| ANV-580-1 | 1 | 304 | 155 | 1.95 | 3.83 | 12 | $580 | $600 | $601 | $609 |
| ANV-580-2 | 2 | 608 | 310 | 3.9 | 6.66 | 24 | $660 | $700 | $702 | $718 |
| ANV-580-3 | 3 | 912 | 465 | 5.85 | 9.49 | 36 | $740 | $800 | $803 | $827 |
| ANV-580-4 | 4 | 1216 | 620 | 7.8 | 12.32 | 48 | $820 | $900 | $904 | $936 |
| ANV-580-5 | 5 | 1520 | 775 | 9.75 | 15.15 | 60 | $900 | $1000 | $1005 | $1045 |
| ANV-580-6 | 6 | 1824 | 930 | 11.7 | 17.98 | 71 | $980 | $1100 | $1106 | $1154 |
| ANV-580-7 | 7 | 2128 | 1085 | 13.65 | 20.81 | 83 | $1060 | $1200 | $1207 | $1263 |
| ANV-580-8 | 8 | 2432 | 1240 | 15.6 | 23.64 | 95 | $1140 | $1300 | $1308 | $1372 |
| ANV-580-9 | 9 | 2736 | 1395 | 17.55 | 26.47 | 107 | $1220 | $1400 | $1409 | $1481 |
| ANV-580-10 | 10 | 3040 | 1550 | 19.5 | 29.3 | 119 | $1300 | $1500 | $1510 | $1590 |
| ANV-580-11 | 11 | 3344 | 1705 | 21.45 | 32.13 | 131 | $1380 | $1600 | $1611 | $1699 |
| ANV-580-12 | 12 | 3648 | 1860 | 23.4 | 34.96 | 143 | $1460 | $1700 | $1712 | $1808 |
| ANV-580-13 | 13 | 3952 | 2015 | 25.35 | 37.79 | 155 | $1540 | $1800 | $1813 | $1917 |
| ANV-580-14 | 14 | 4256 | 2170 | 27.3 | 40.62 | 167 | $1620 | $1900 | $1914 | $2026 |
| ANV-580-15 | 15 | 4560 | 2325 | 29.25 | 43.45 | 179 | $1700 | $2000 | $2015 | $2135 |
| ANV-580-16 | 16 | 4864 | 2480 | 31.2 | 46.28 | 190 | $1780 | $2100 | $2116 | $2244 |
| ANV-580-17 | 17 | 5168 | 2635 | 33.15 | 49.11 | 202 | $1860 | $2200 | $2217 | $2353 |
| ANV-580-18 | 18 | 5472 | 2790 | 35.1 | 51.94 | 214 | $1940 | $2300 | $2318 | $2462 |
| ANV-580-19 | 19 | 5776 | 2945 | 37.05 | 54.77 | 226 | $2020 | $2400 | $2419 | $2571 |
| ANV-580-20 | 20 | 6080 | 3100 | 39.0 | 57.6 | 238 | $2100 | $2500 | $2520 | $2680 |
