9 Tube Cast Iron Radiators 14"
9 Tube Cast Iron Radiators 14"
$695.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Stylish and Perfect for Under Windows
The 9-Tube Cast Iron Radiator is a classic design originally inspired by the American Radiator Company and developed to sit beneath tall windows in grand Georgian homes. Today, it’s the ideal solution for conservatories, bay windows, or any space where height is limited but strong heat output is essential.
Part of our traditional cast-iron radiator collection, this 9-Tube model is a timeless design also known as a Neo-Classic or Victorian radiator. Its elegant vertical lines and compact depth make it a versatile choice for both period properties and contemporary spaces seeking heritage appeal.
Cast using traditional techniques and built by hand in our workshop, each radiator is fully assembled, pressure-tested to 8 bar, and finished to your exact specification. Choose from a wide range of painted, polished, or metallic finishes to complement your interior.
Backed by a 10-year guarantee and manufactured to meet international standards, this is a radiator built for performance and made to last.
Call (212) 814-6888 to customize and order your 9-Tube radiator today.

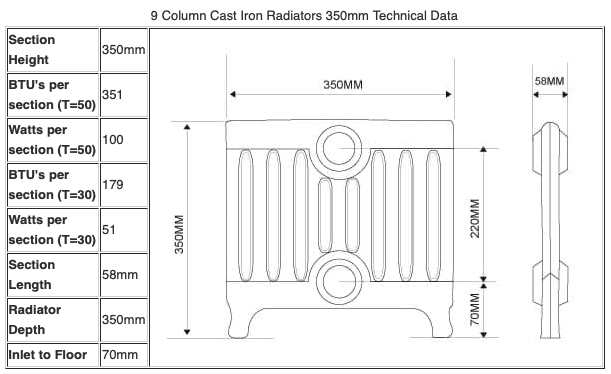

Product specifications
| BTU output (Delta 50) per section (Regular gas Boiler) | |
|---|---|
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.
Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Columns | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|
| 9CL-350-1 | 1 | 351 | 179 | 2.25 | 3.28 | 15 | $565 | $585 | $586 | $594 |
| 9CL-350-2 | 2 | 702 | 358 | 4.5 | 5.56 | 31 | $630 | $670 | $672 | $688 |
| 9CL-350-3 | 3 | 1053 | 537 | 6.75 | 7.84 | 46 | $695 | $755 | $758 | $782 |
| 9CL-350-4 | 4 | 1404 | 716 | 9.0 | 10.12 | 62 | $760 | $840 | $844 | $876 |
| 9CL-350-5 | 5 | 1755 | 895 | 11.25 | 12.4 | 77 | $825 | $925 | $930 | $970 |
| 9CL-350-6 | 6 | 2106 | 1074 | 13.5 | 14.68 | 92 | $890 | $1010 | $1016 | $1064 |
| 9CL-350-7 | 7 | 2457 | 1253 | 15.75 | 16.96 | 108 | $955 | $1095 | $1102 | $1158 |
| 9CL-350-8 | 8 | 2808 | 1432 | 18.0 | 19.24 | 123 | $1020 | $1180 | $1188 | $1252 |
| 9CL-350-9 | 9 | 3159 | 1611 | 20.25 | 21.52 | 139 | $1085 | $1265 | $1274 | $1346 |
| 9CL-350-10 | 10 | 3510 | 1790 | 22.5 | 23.8 | 154 | $1150 | $1350 | $1360 | $1440 |
| 9CL-350-11 | 11 | 3861 | 1969 | 24.75 | 26.08 | 169 | $1215 | $1435 | $1446 | $1534 |
| 9CL-350-12 | 12 | 4212 | 2148 | 27.0 | 28.36 | 185 | $1280 | $1520 | $1532 | $1628 |
| 9CL-350-13 | 13 | 4563 | 2327 | 29.25 | 30.64 | 200 | $1345 | $1605 | $1618 | $1722 |
| 9CL-350-14 | 14 | 4914 | 2506 | 31.5 | 32.92 | 216 | $1410 | $1690 | $1704 | $1816 |
| 9CL-350-15 | 15 | 5265 | 2685 | 33.75 | 35.2 | 231 | $1475 | $1775 | $1790 | $1910 |
| 9CL-350-16 | 16 | 5616 | 2864 | 36.0 | 37.48 | 246 | $1540 | $1860 | $1876 | $2004 |
| 9CL-350-17 | 17 | 5967 | 3043 | 38.25 | 39.76 | 262 | $1605 | $1945 | $1962 | $2098 |
| 9CL-350-18 | 18 | 6318 | 3222 | 40.5 | 42.04 | 277 | $1670 | $2030 | $2048 | $2192 |
| 9CL-350-19 | 19 | 6669 | 3401 | 42.75 | 44.32 | 293 | $1735 | $2115 | $2134 | $2286 |
| 9CL-350-20 | 20 | 7020 | 3580 | 45.0 | 46.6 | 308 | $1800 | $2200 | $2220 | $2380 |
