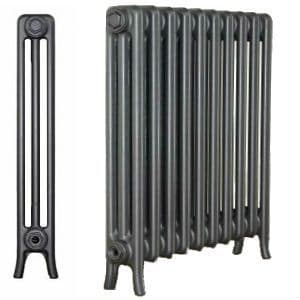

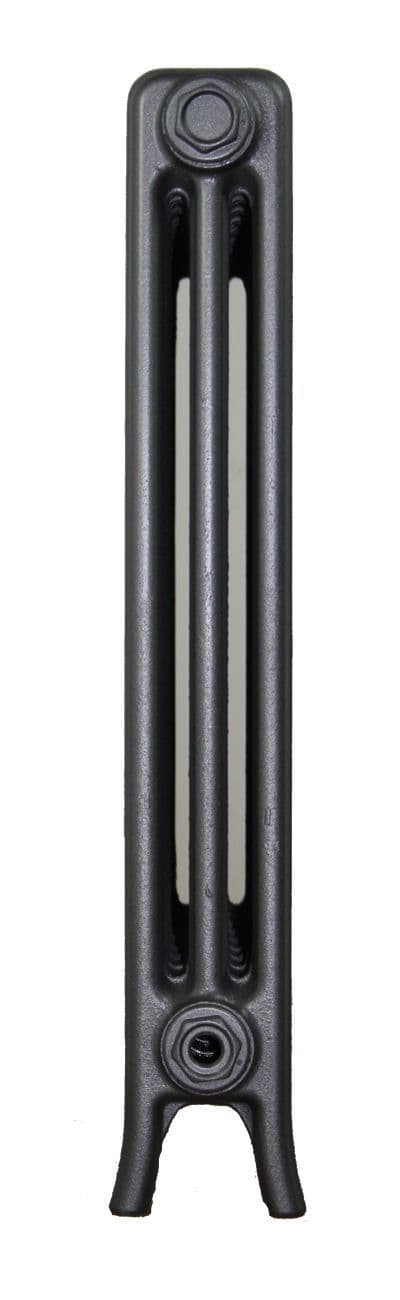

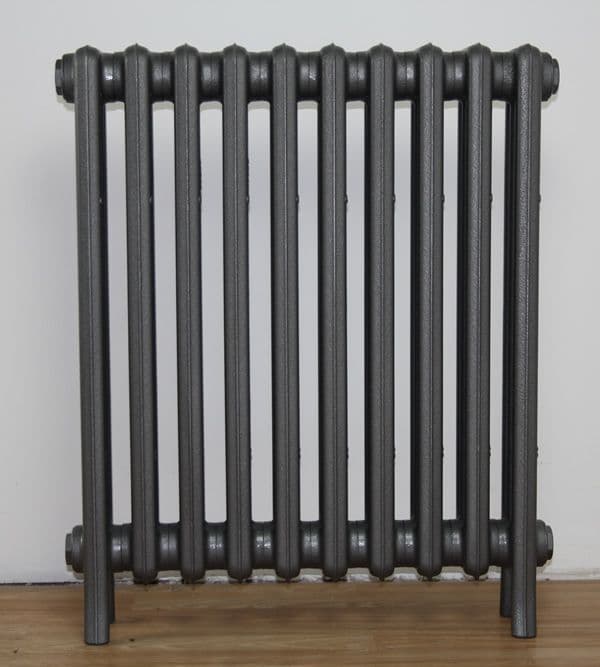

Classic 3 Tube Cast Iron Radiators 30"
Classic 3 Tube Cast Iron Radiators 30"
$680.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
A Perfect Balance of Style and Heat

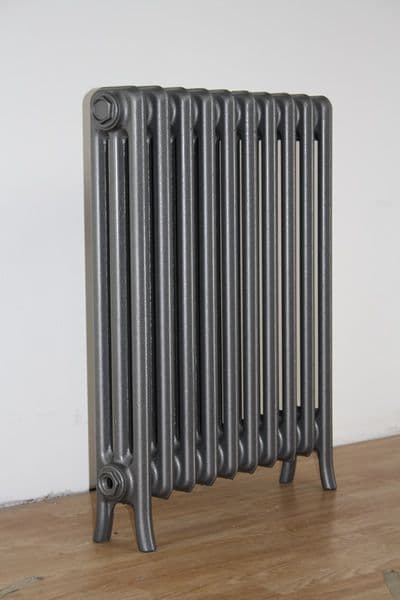

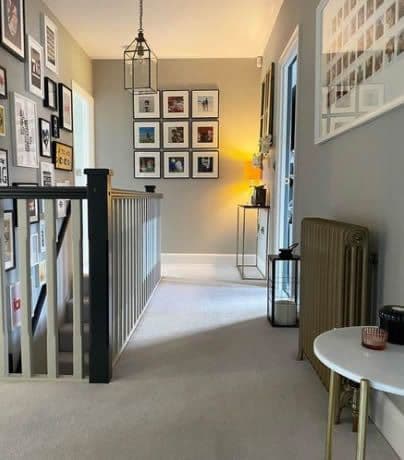

The 30" 3-Tube Classic Cast Iron Radiator offers the ideal blend of elegant design and efficient performance. With its slim profile and traditional styling, it’s a popular choice for living rooms, bedrooms, and hallways in both period and modern homes.
Suitable for both hydronic hot water systems and steam heating systems (1-pipe or 2-pipe), the 3-Tube Classic provides dependable warmth with timeless appeal. Each radiator is hand-assembled to order and can be finished in your choice of length, color, or polished style to perfectly match your space.
Precision-cast using high-quality moulds, every radiator is pressure-tested for durability and backed by a 25-year guarantee—delivering lasting performance and heritage character.
To customize or place your order, call us at 212-814-6888.

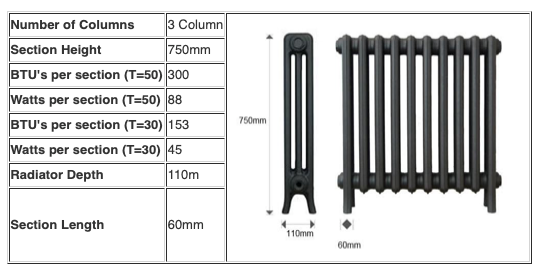

Product specifications
| BTU output (Delta 50) per section (Regular gas Boiler) | |
|---|---|
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.

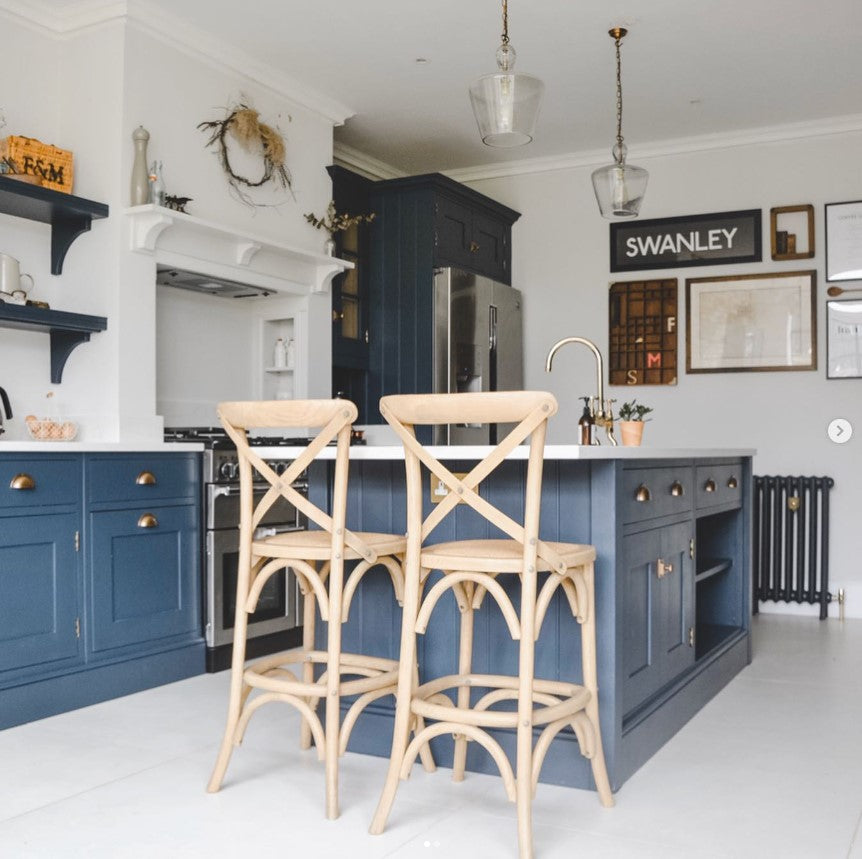

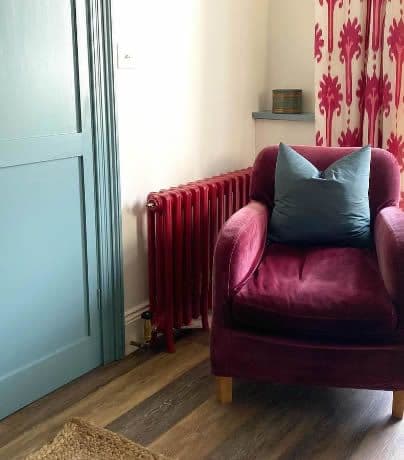

Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.

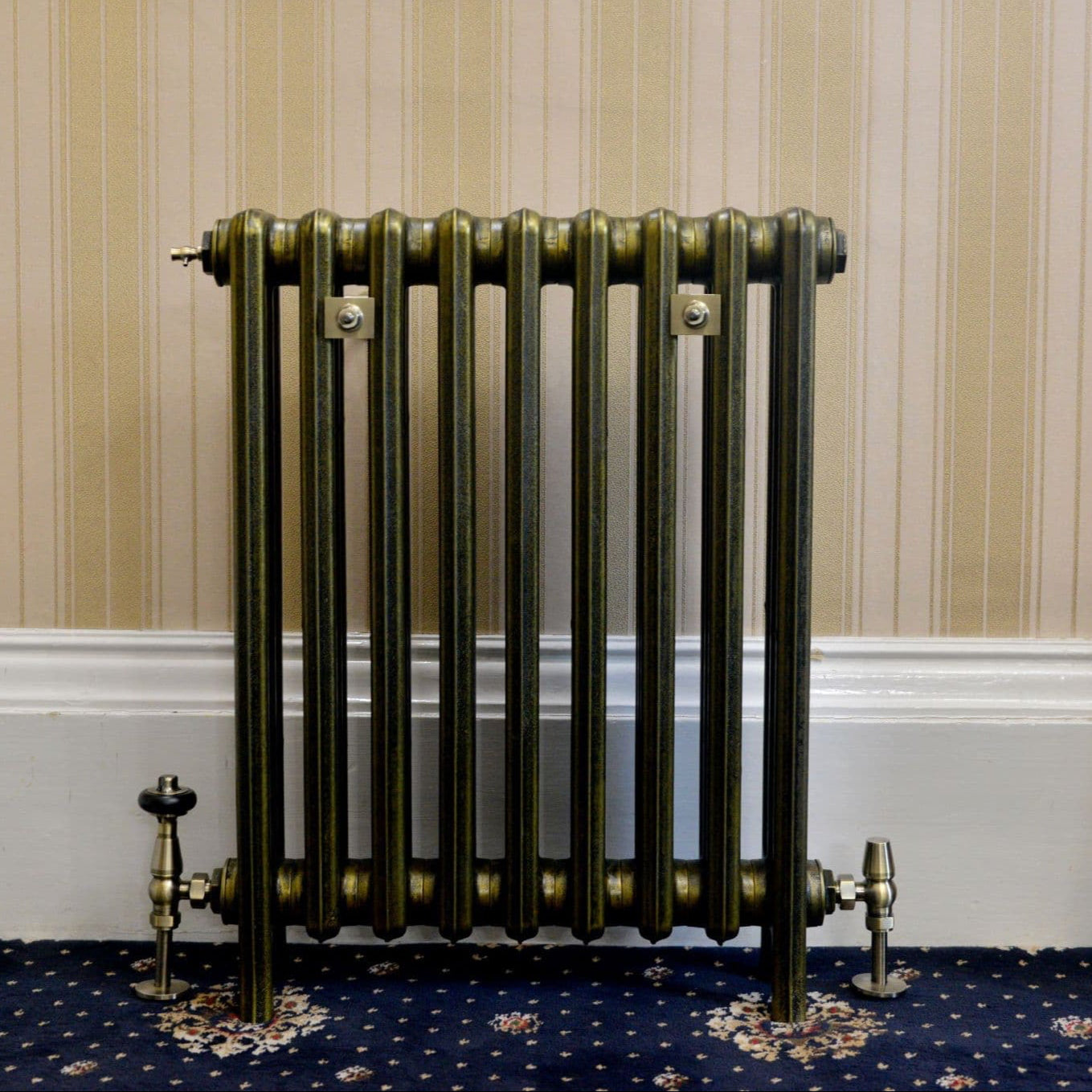

Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.

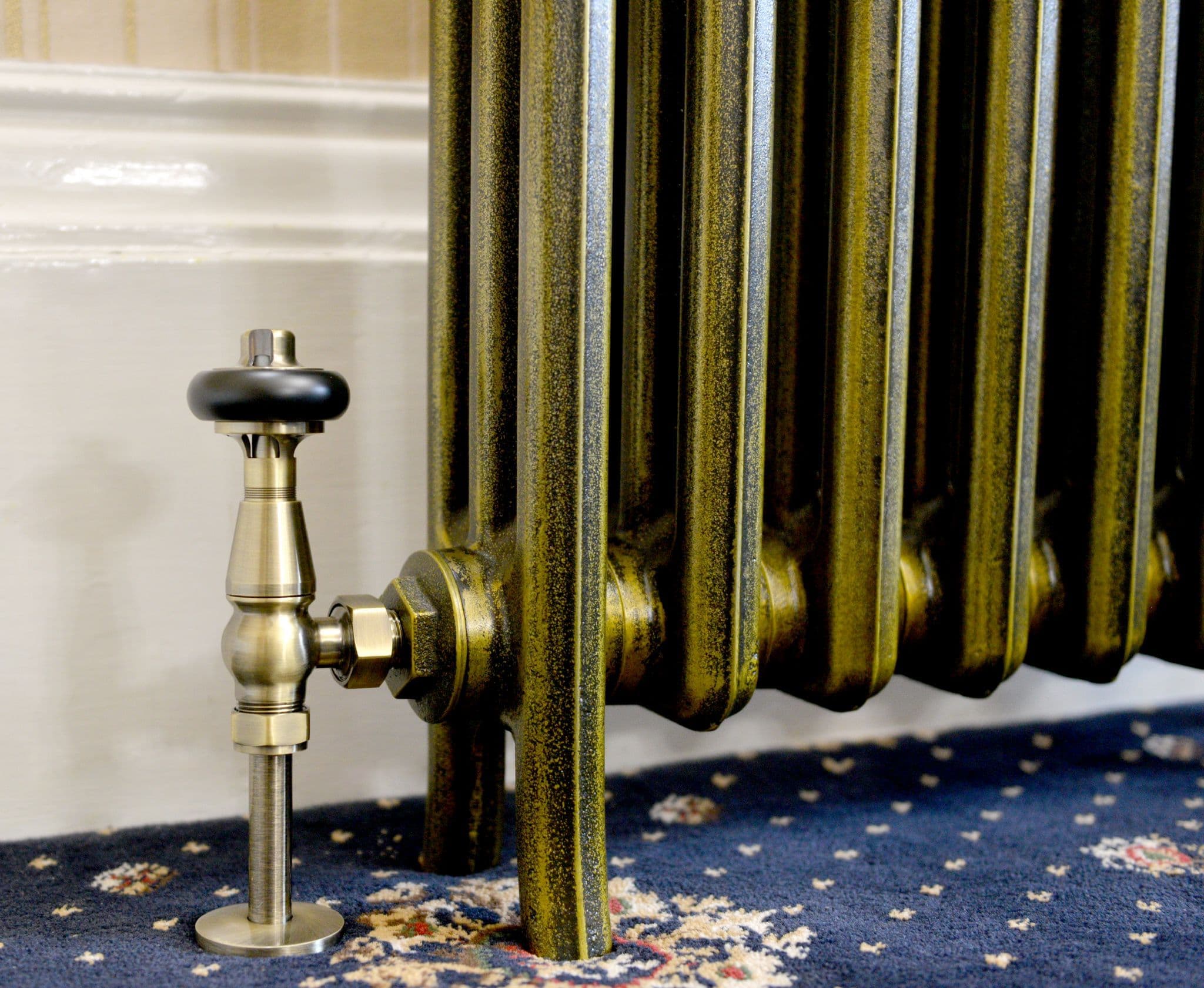

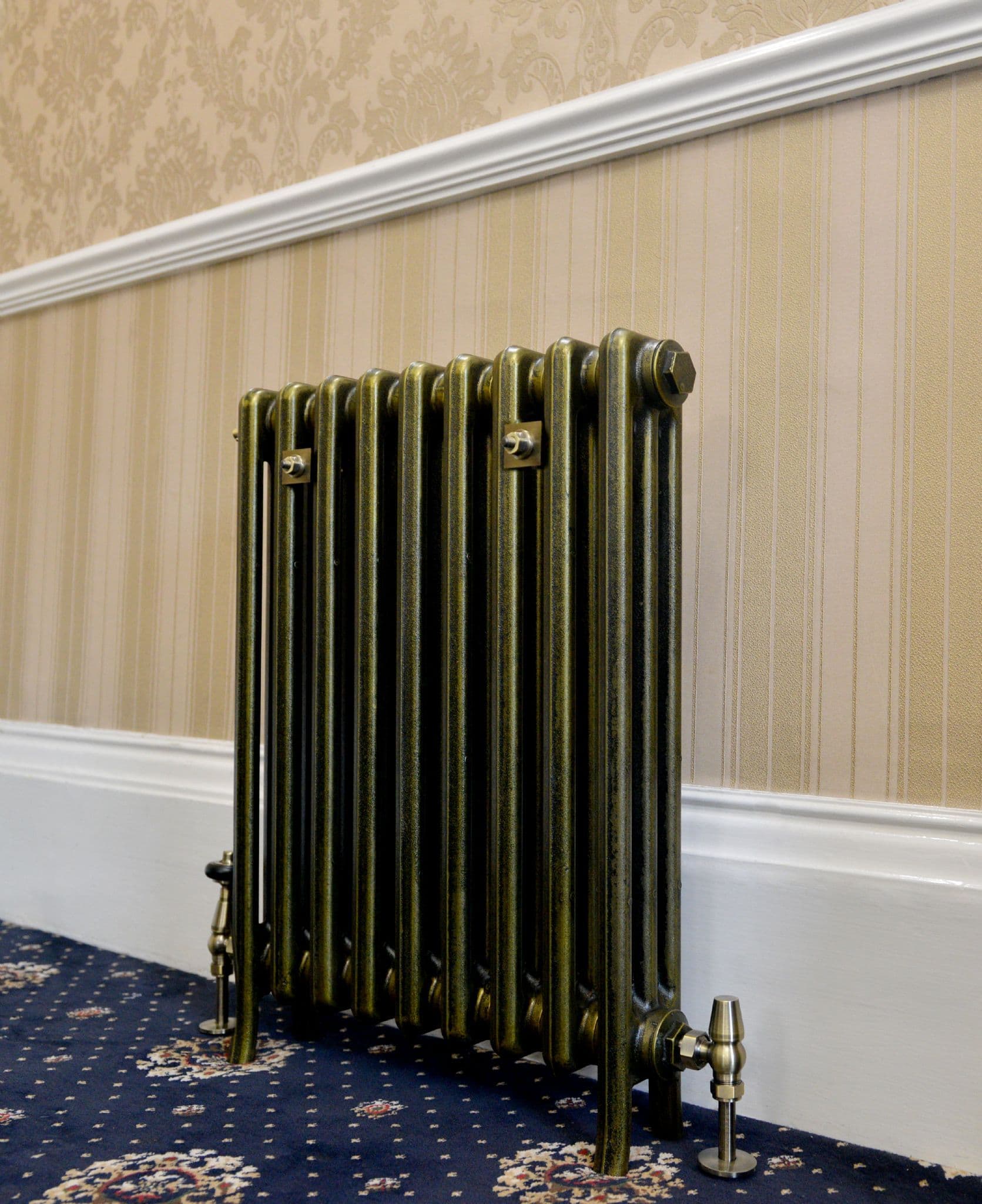

Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|
| NC3-750-1 | 1 | 300 | 153 | 1.93 | 1 | 11 | $20 | $26 | $38 | $45 |
| NC3-750-2 | 2 | 600 | 306 | 3.86 | 1 | 23 | $40 | $52 | $76 | $90 |
| NC3-750-3 | 3 | 900 | 459 | 5.79 | 1 | 34 | $60 | $78 | $114 | $135 |
| NC3-750-4 | 4 | 1200 | 612 | 7.72 | 1 | 46 | $80 | $104 | $152 | $180 |
| NC3-750-5 | 5 | 1500 | 765 | 9.65 | 1 | 57 | $100 | $130 | $190 | $225 |
| NC3-750-6 | 6 | 1800 | 918 | 11.58 | 1 | 69 | $120 | $156 | $228 | $270 |
| NC3-750-7 | 7 | 2100 | 1071 | 13.51 | 1 | 80 | $140 | $182 | $266 | $315 |
| NC3-750-8 | 8 | 2400 | 1224 | 15.44 | 1 | 92 | $160 | $208 | $304 | $360 |
| NC3-750-9 | 9 | 2700 | 1377 | 17.37 | 1 | 103 | $180 | $234 | $342 | $405 |
| NC3-750-10 | 10 | 3000 | 1530 | 19.3 | 1 | 115 | $200 | $260 | $380 | $450 |
| NC3-750-11 | 11 | 3300 | 1683 | 21.23 | 1 | 126 | $220 | $286 | $418 | $495 |
| NC3-750-12 | 12 | 3600 | 1836 | 23.16 | 1 | 138 | $240 | $312 | $456 | $540 |
| NC3-750-13 | 13 | 3900 | 1989 | 25.09 | 1 | 149 | $260 | $338 | $494 | $585 |
| NC3-750-14 | 14 | 4200 | 2142 | 27.02 | 1 | 160 | $280 | $364 | $532 | $630 |
| NC3-750-15 | 15 | 4500 | 2295 | 28.95 | 1 | 172 | $300 | $390 | $570 | $675 |
| NC3-750-16 | 16 | 4800 | 2448 | 30.88 | 1 | 183 | $320 | $416 | $608 | $720 |
| NC3-750-17 | 17 | 5100 | 2601 | 32.81 | 1 | 195 | $340 | $442 | $646 | $765 |
| NC3-750-18 | 18 | 5400 | 2754 | 34.74 | 1 | 206 | $360 | $468 | $684 | $810 |
| NC3-750-19 | 19 | 5700 | 2907 | 36.67 | 1 | 218 | $380 | $494 | $722 | $855 |
| NC3-750-20 | 20 | 6000 | 3060 | 38.6 | 1 | 229 | $400 | $520 | $760 | $900 |
