Art Nouveau Cast Iron Radiators 30"
Art Nouveau Cast Iron Radiators 30"
$820.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graceful Lines, Impressive Heat

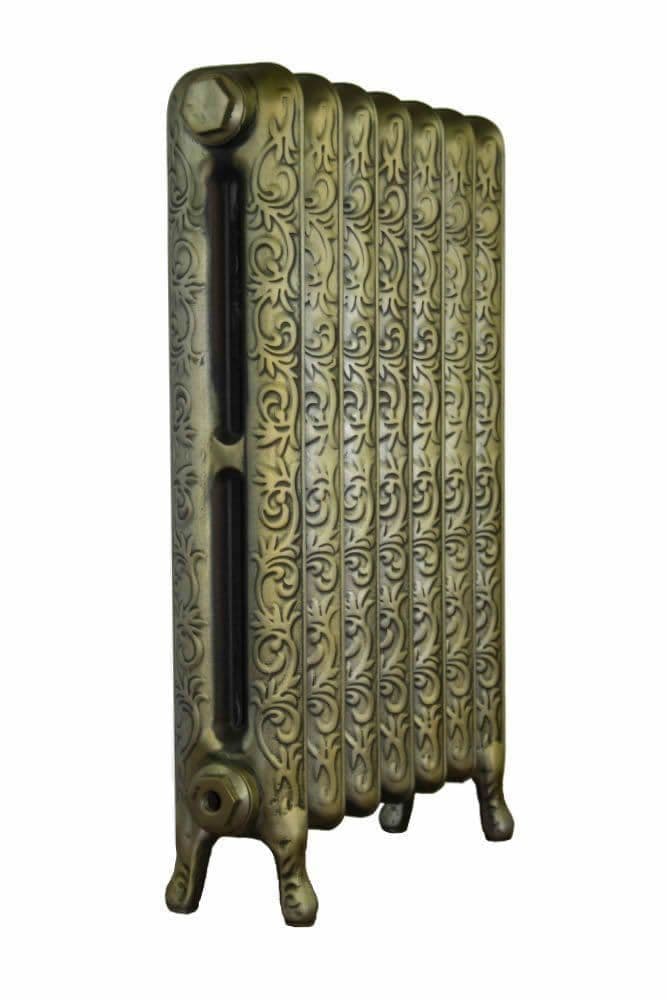

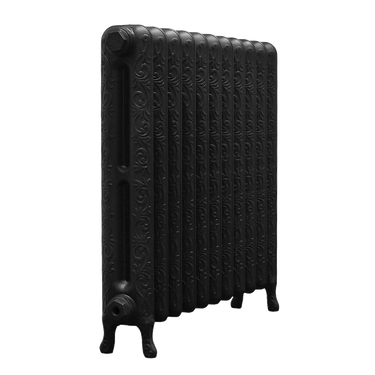

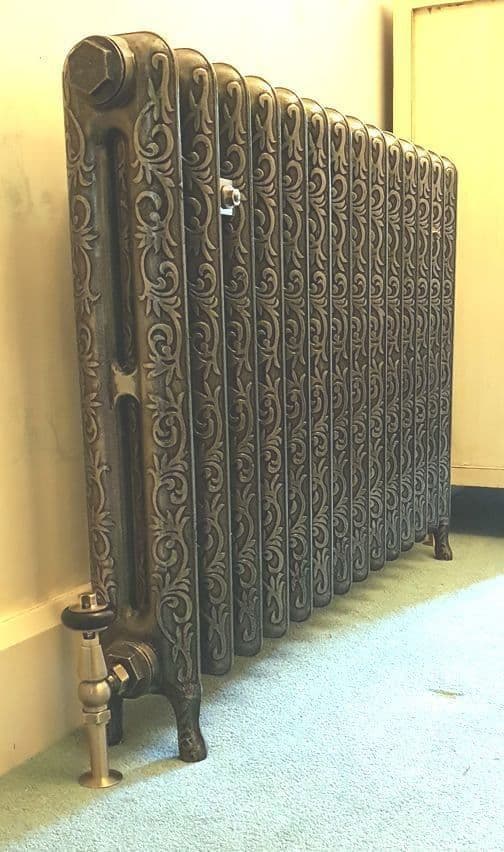

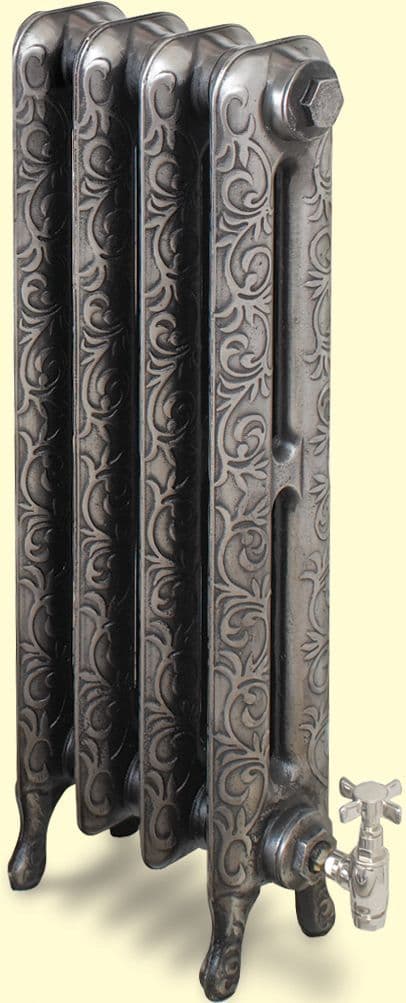

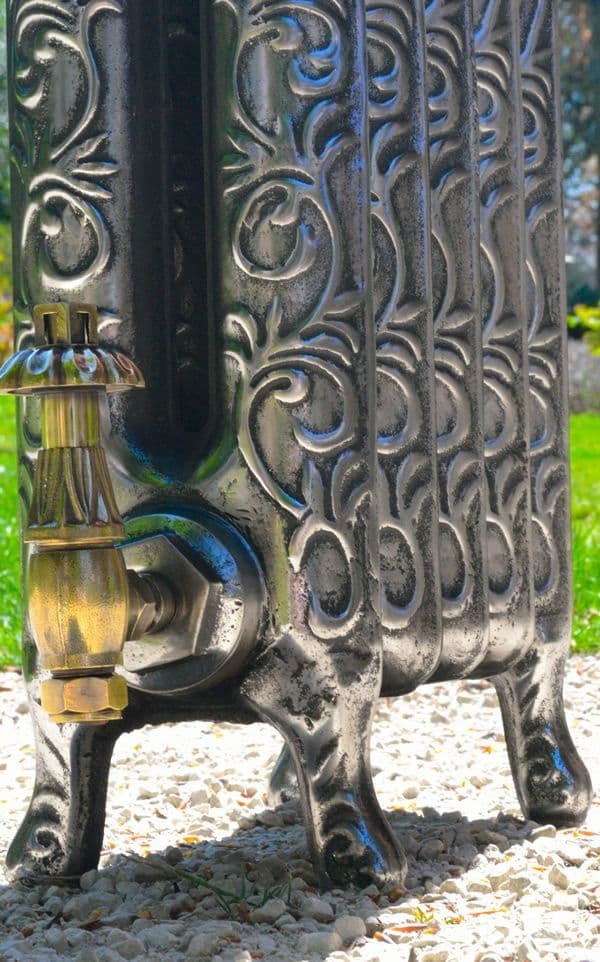

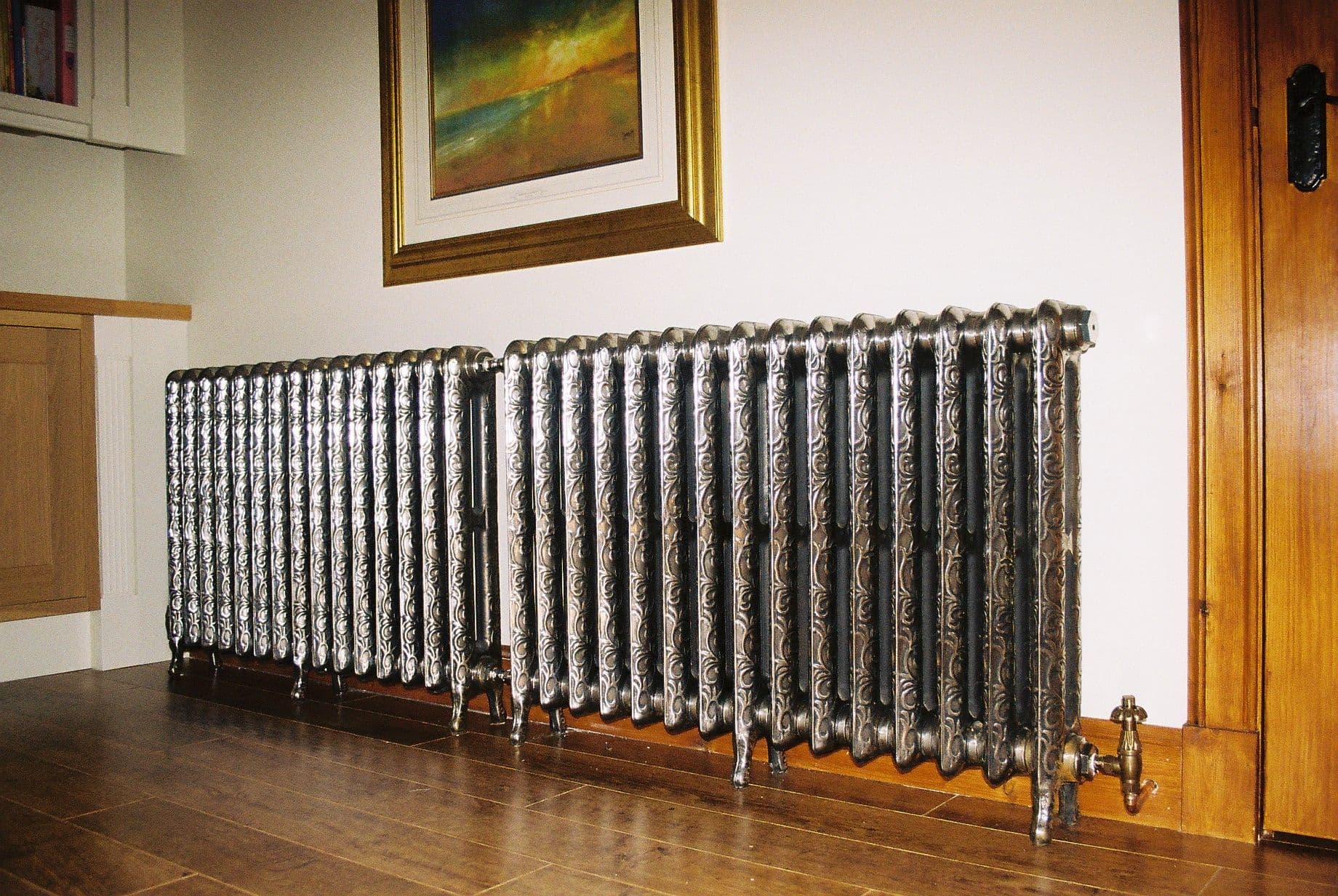

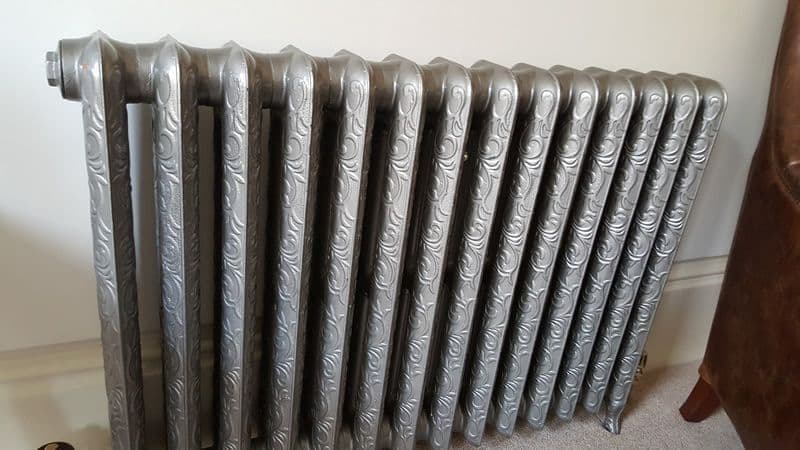

The Art Nouveau, 30" Cast Iron Radiator is a tall, elegant model inspired by the flowing, organic forms of the 1890–1910 Art Nouveau movement. With its slim profile and intricately scrolling design, this radiator brings subtle decorative detail and timeless character to both traditional and contemporary interiors.
Though slender in form, the 30" Art Nouveau radiator delivers excellent heat output, making it a practical choice for stylish spaces. Cast using original molds and finished by hand in our workshop, each radiator is available in any length and a wide range of finishes—from bold colors to polished and metallic options.
Fully assembled, pressure-tested to 8 bar, and manufactured to meet international standards, this design classic is built to perform and designed to impress. Also available in a shorter 23" version for added versatility.
Call (212) 814-6888 to order or customize your Art Nouveau radiator today.
Product specifications
| BTU output (Delta 50) per section (Regular gas Boiler) | |
|---|---|
| BTU output (Delta 30) per section (Heat pump) | |
| EDR sq ft (Equivalent Direct Radiation) | |
| Volume (gal) | |
| Weight (lb) | |
| Section Length (in) | |
| Height (in) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 212 814 6888 to discuss your requirements.
Metallic Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 212 814 6888
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Columns | BTUs (ΔT=50) | BTUs (ΔT=30) | EDR (sq.ft) | Radiator Length (in) | Radiator Weight (lb) | Primer | Painted | Powder Coated | Metallic |
|---|---|---|---|---|---|---|---|---|---|---|
| ANV-750-1 | 1 | 382 | 194 | 2.45 | 3.83 | 16 | $580 | $600 | $609 | $615 |
| ANV-750-2 | 2 | 764 | 388 | 4.9 | 6.66 | 33 | $660 | $700 | $718 | $730 |
| ANV-750-3 | 3 | 1146 | 582 | 7.35 | 9.49 | 49 | $740 | $800 | $827 | $845 |
| ANV-750-4 | 4 | 1528 | 776 | 9.8 | 12.32 | 65 | $820 | $900 | $936 | $960 |
| ANV-750-5 | 5 | 1910 | 970 | 12.25 | 15.15 | 82 | $900 | $1000 | $1045 | $1075 |
| ANV-750-6 | 6 | 2292 | 1164 | 14.7 | 17.98 | 98 | $980 | $1100 | $1154 | $1190 |
| ANV-750-7 | 7 | 2674 | 1358 | 17.15 | 20.81 | 114 | $1060 | $1200 | $1263 | $1305 |
| ANV-750-8 | 8 | 3056 | 1552 | 19.6 | 23.64 | 130 | $1140 | $1300 | $1372 | $1420 |
| ANV-750-9 | 9 | 3438 | 1746 | 22.05 | 26.47 | 147 | $1220 | $1400 | $1481 | $1535 |
| ANV-750-10 | 10 | 3820 | 1940 | 24.5 | 29.3 | 163 | $1300 | $1500 | $1590 | $1650 |
| ANV-750-11 | 11 | 4202 | 2134 | 26.95 | 32.13 | 179 | $1380 | $1600 | $1699 | $1765 |
| ANV-750-12 | 12 | 4584 | 2328 | 29.4 | 34.96 | 196 | $1460 | $1700 | $1808 | $1880 |
| ANV-750-13 | 13 | 4966 | 2522 | 31.85 | 37.79 | 212 | $1540 | $1800 | $1917 | $1995 |
| ANV-750-14 | 14 | 5348 | 2716 | 34.3 | 40.62 | 228 | $1620 | $1900 | $2026 | $2110 |
| ANV-750-15 | 15 | 5730 | 2910 | 36.75 | 43.45 | 245 | $1700 | $2000 | $2135 | $2225 |
| ANV-750-16 | 16 | 6112 | 3104 | 39.2 | 46.28 | 261 | $1780 | $2100 | $2244 | $2340 |
| ANV-750-17 | 17 | 6494 | 3298 | 41.65 | 49.11 | 277 | $1860 | $2200 | $2353 | $2455 |
| ANV-750-18 | 18 | 6876 | 3492 | 44.1 | 51.94 | 293 | $1940 | $2300 | $2462 | $2570 |
| ANV-750-19 | 19 | 7258 | 3686 | 46.55 | 54.77 | 310 | $2020 | $2400 | $2571 | $2685 |
| ANV-750-20 | 20 | 7640 | 3880 | 49.0 | 57.6 | 326 | $2100 | $2500 | $2680 | $2800 |
